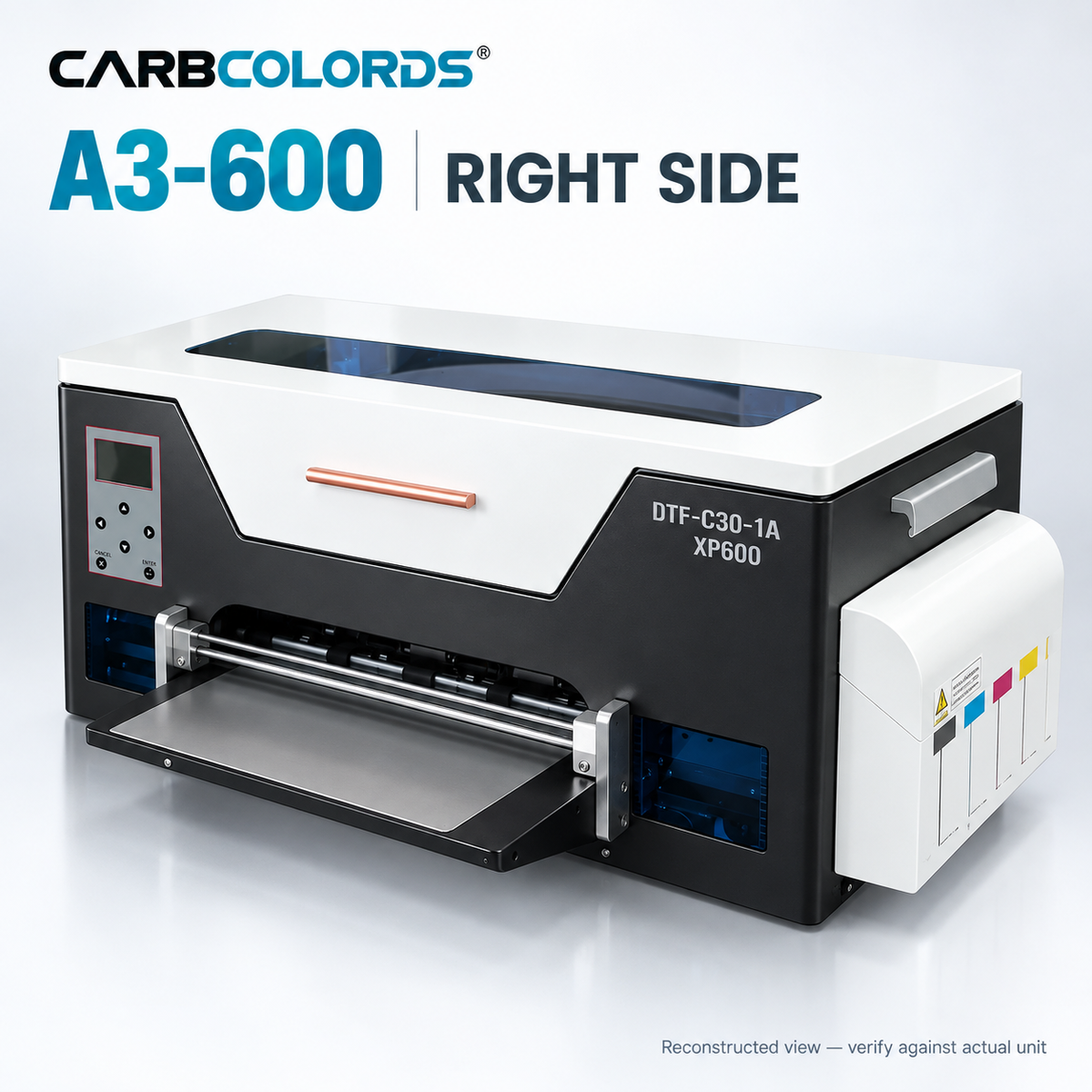

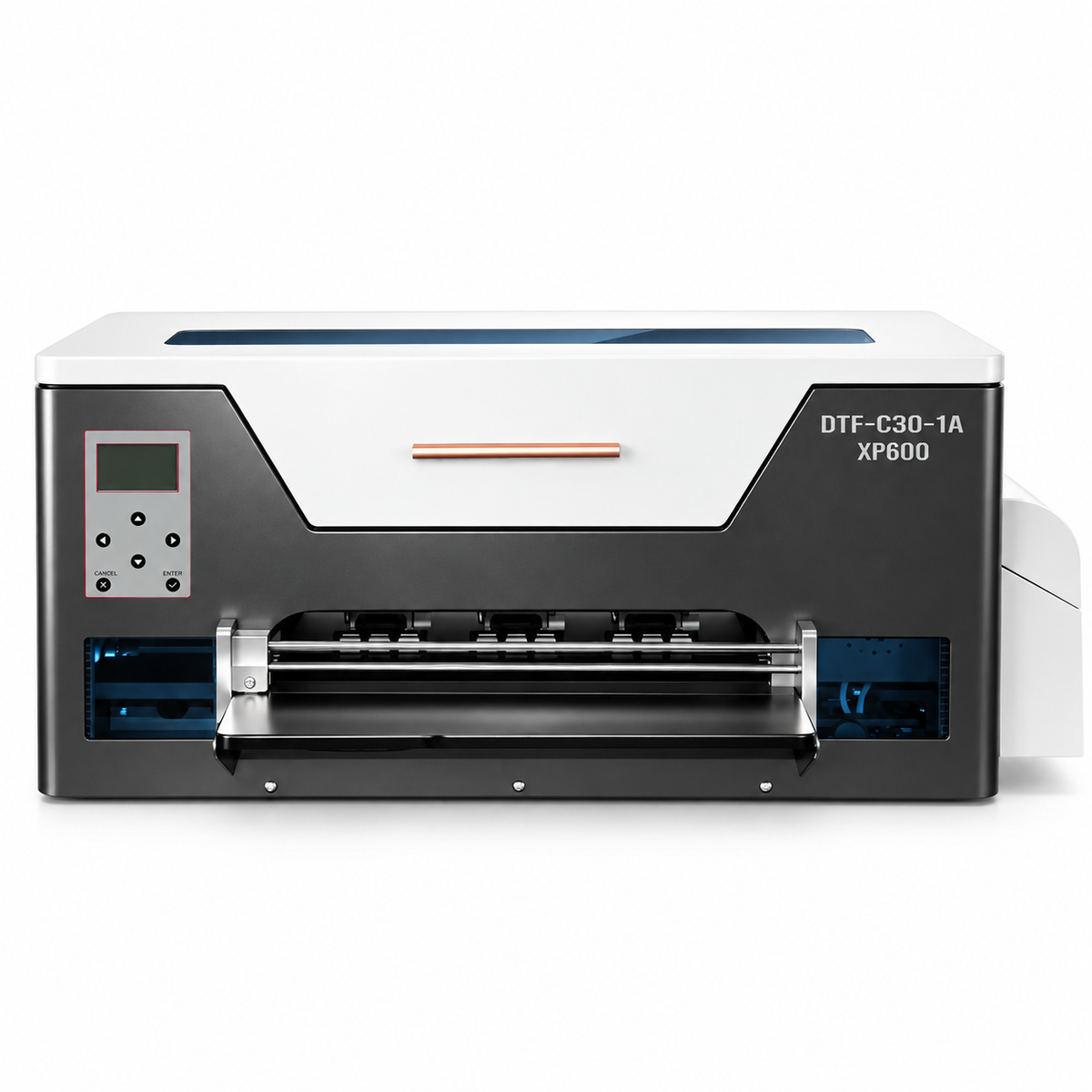

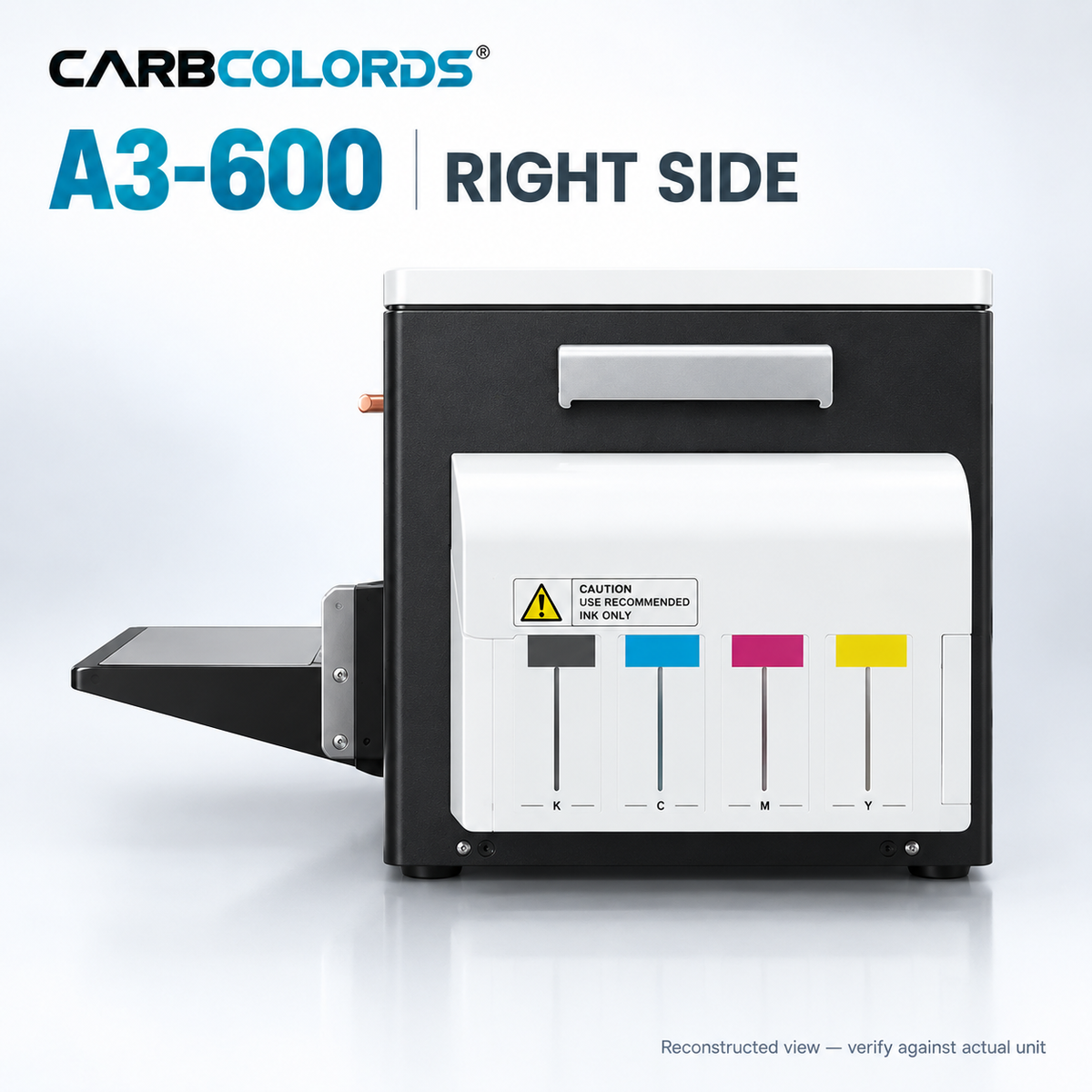

A3-600 13" DTF Printer with XP600 Printhead
Tax excluded. Shipping calculated at checkout
Warranty Registration
For parts not in direct contact with ink,
1-Year Limited Warranty is provided from the date of purchase of the printer, unless the damage is caused by the user.
We are dedicated to offering you the best products and services.
Customer Support:support@carbcolords.com
13" DTF Printing for Custom Apparel
Create custom transfers for T-shirts, hoodies, tote bags, and more with the CARBCOLORDS A3-600. An XP600 printhead, a 330 mm (approximately 13") print width, and roll-fed printing give you room for colorful artwork, logos, and lettering.
- 330 mm print width for larger graphics or multiple smaller designs.
- One XP600 printhead with CMYK + two white ink channels.
- White ink circulation, stirring, and filtration to support ink management.
- Roll-fed printing, a built-in film cutter, and a suction platform for film handling.

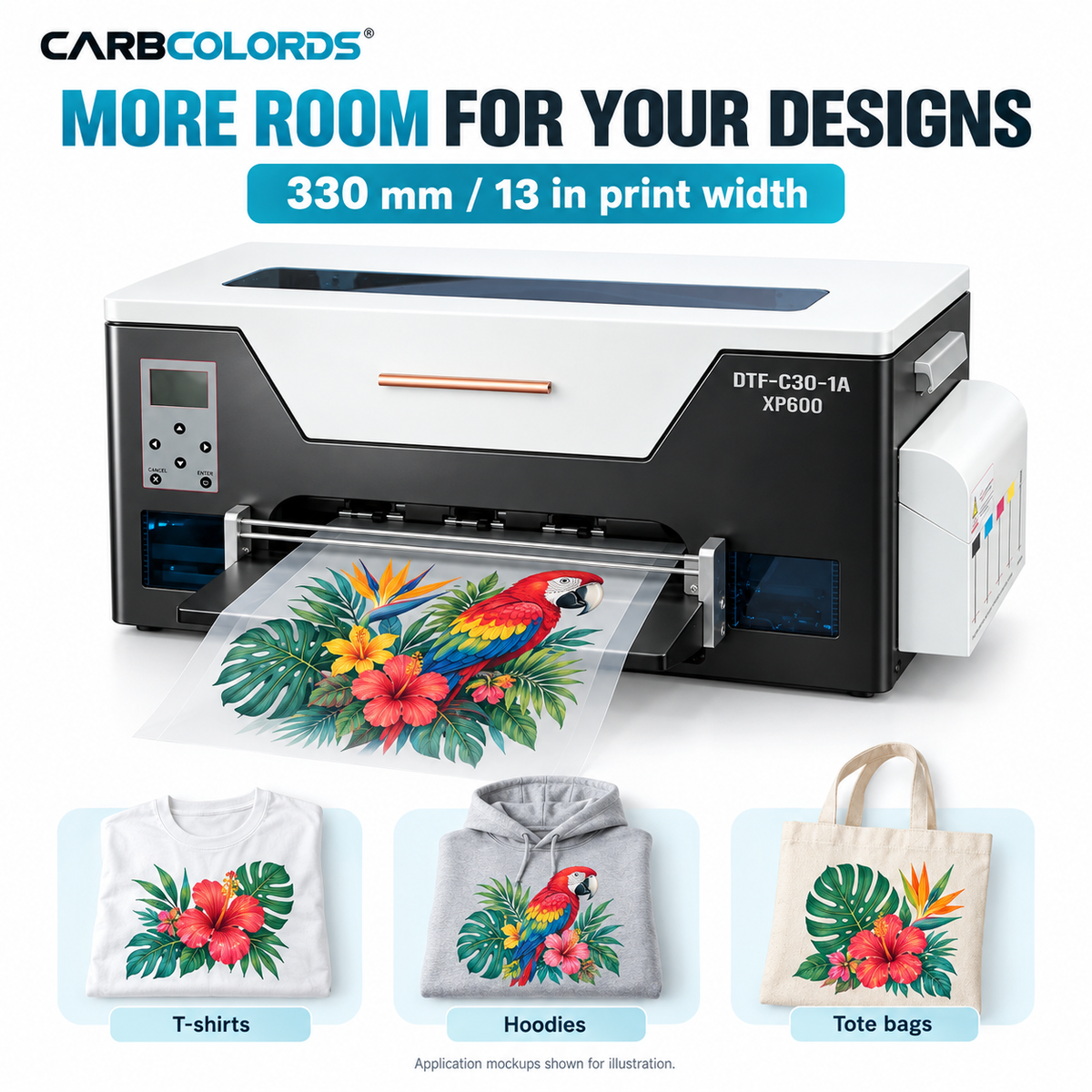

More Room for Your Designs
Print individual graphics or arrange smaller designs across the 330 mm print width. The A3-600 prints onto DTF film for transfer to suitable textiles using DTF powder, curing equipment, and a heat press.
XP600 Color & White Ink Printing
The six-channel XP600 printhead uses cyan, magenta, yellow, black, and two white ink channels. White ink provides a base for color transfers on dark fabrics.
Multiple print modes let you select settings to suit your artwork and production needs.

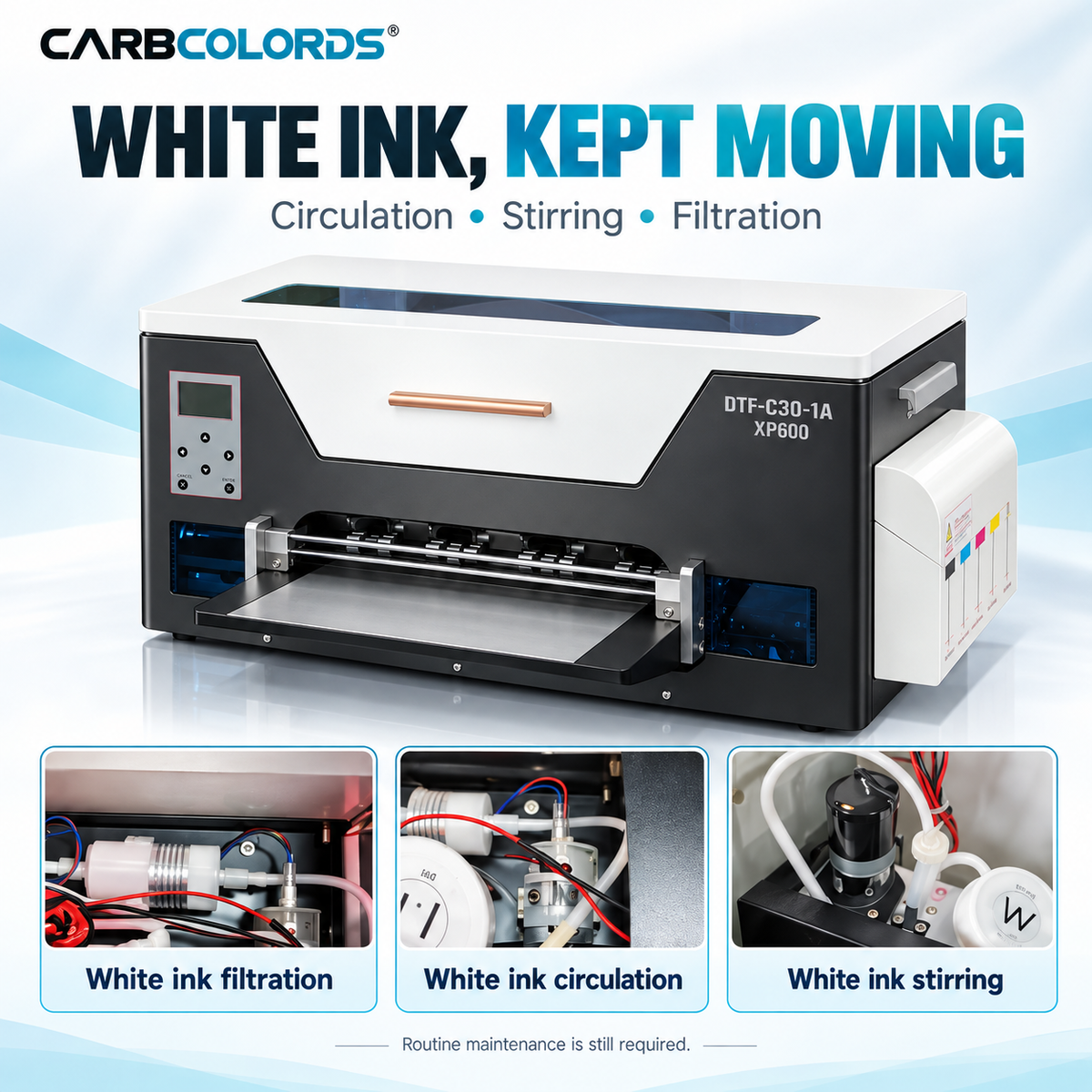

White Ink Circulation, Stirring & Filtration
- Circulation: Keeps white ink moving through the system.
- Stirring: Helps reduce settling in the white ink supply.
- Filtration: Helps capture particles in the ink flow.
Regular nozzle checks, cleaning, and proper ink care are still required.

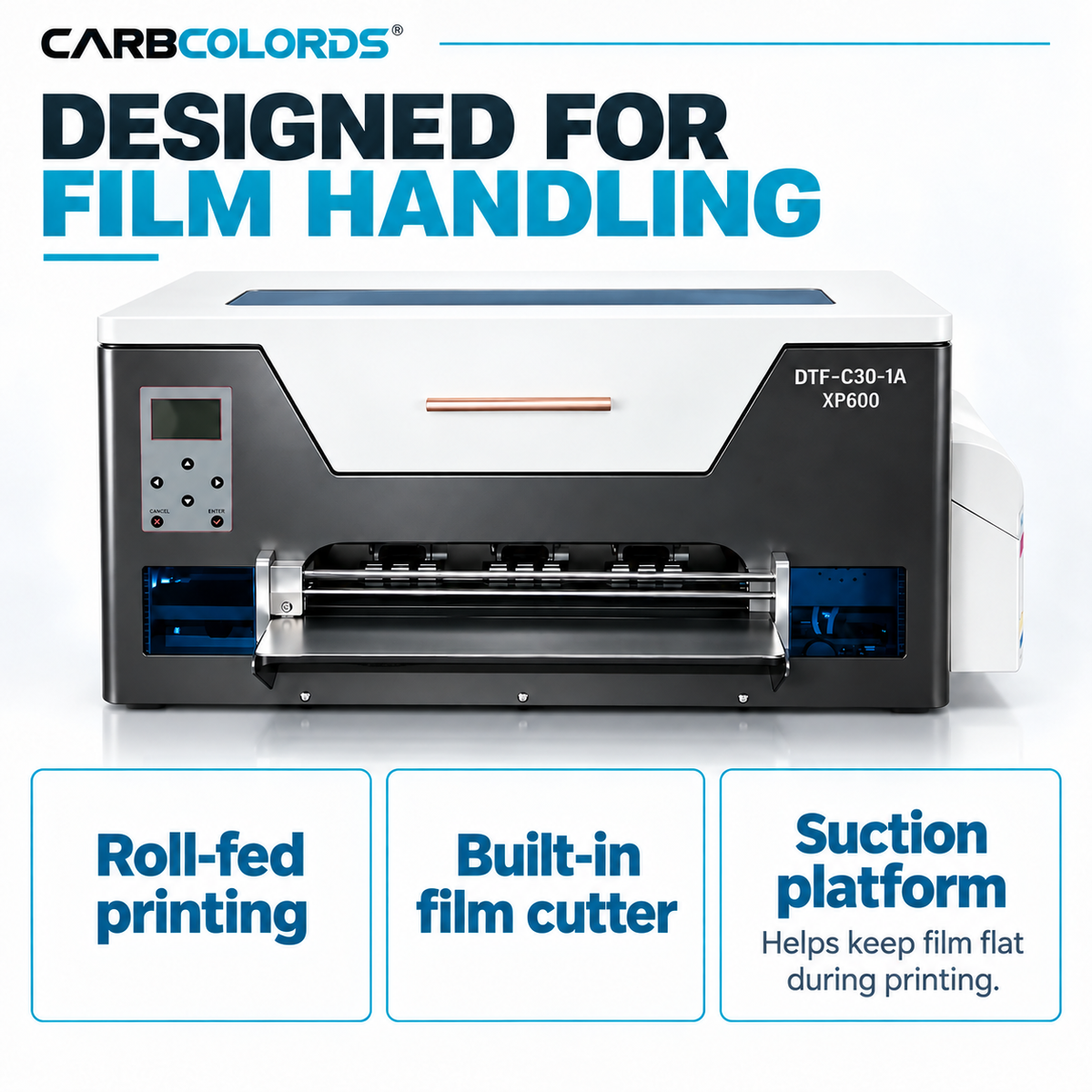

Practical Film Handling

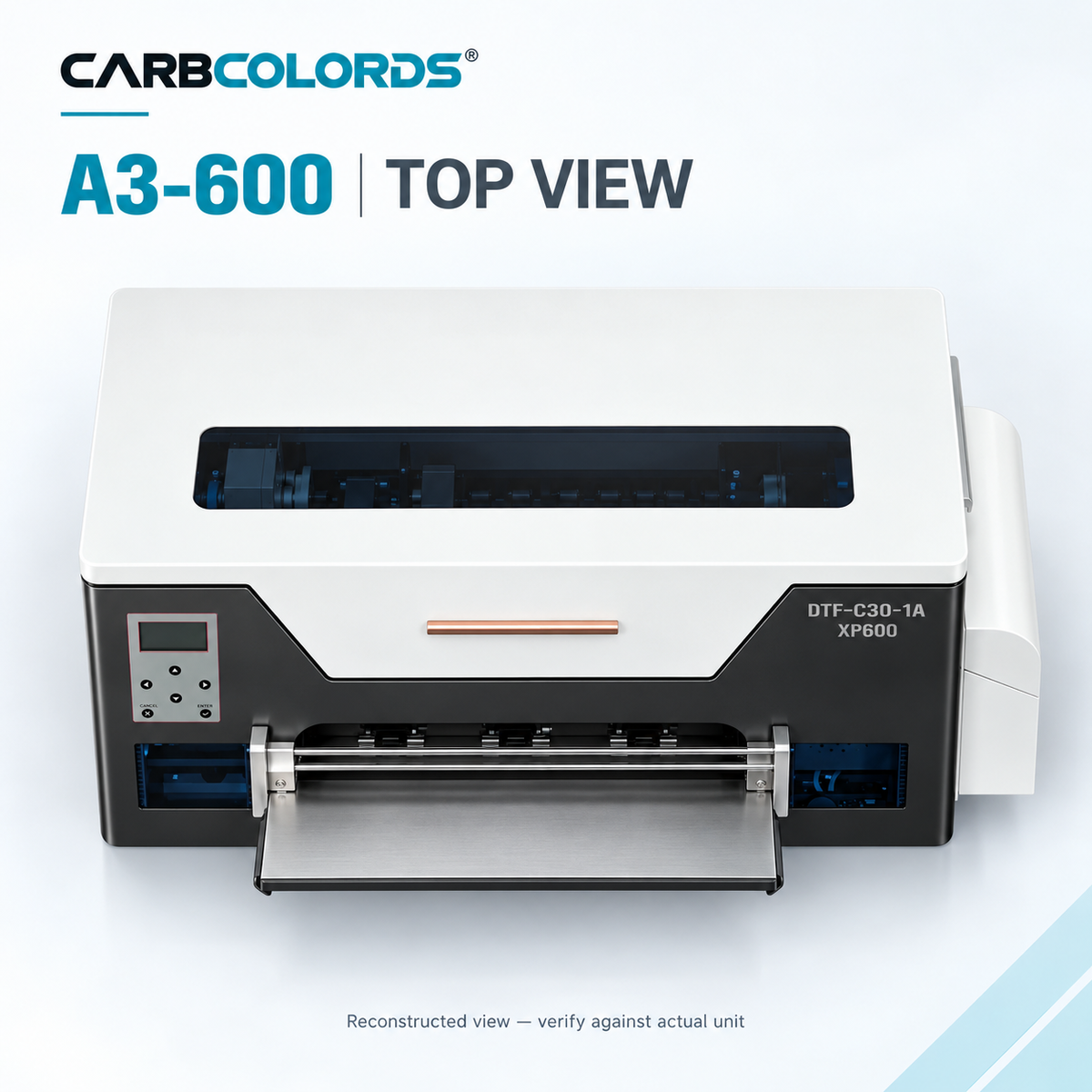

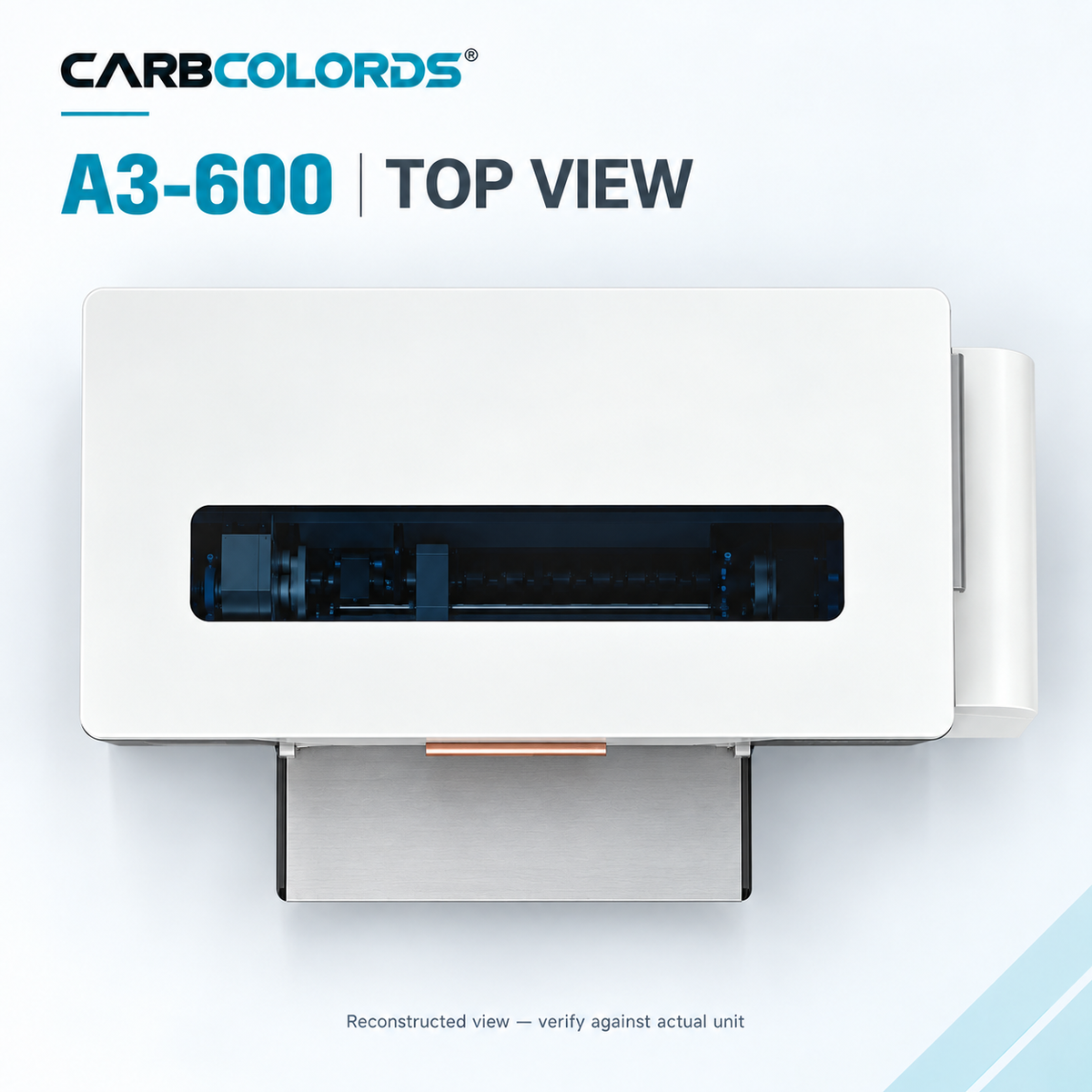

Print onto DTF roll film with a suction platform that helps keep film flat during printing. The built-in cutter lets you separate the film after printing, while the top viewing window provides a view of the printing area without opening the cover.

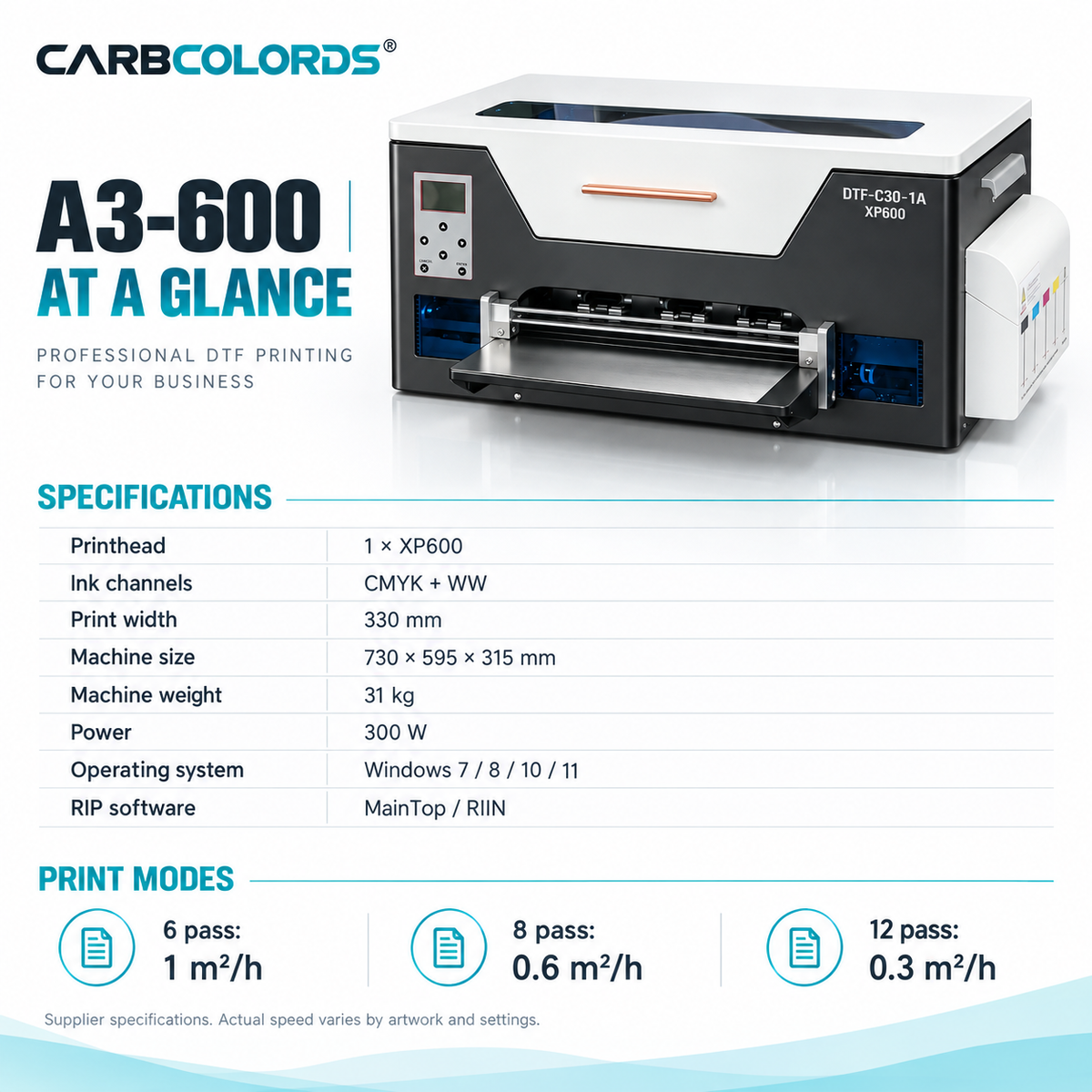

Technical Specifications
| Equipment Model | DTF-C30-1A |
|---|---|
| Printhead | 1 × XP600 |
| Ink Channels | CMYK + WW |
| Maximum Print Width | 330 mm / approximately 13" |
| Ink & Media | DTF ink and DTF film |
| Feeding Method | Roll-fed |
| Print Resolution Options | 720 × 1080 / 720 × 1440 / 720 × 2160 dpi |
| Machine Dimensions | 730 × 595 × 315 mm |
| Machine Weight | 31 kg |
| Rated Power | 300 W |
| Operating System | Windows 7 / 8 / 10 / 11 |
| RIP Software Options | MainTop / RIIN |
| Supported File Formats | PDF / TIF / PNG |
| Recommended Temperature | 20–28°C |
| Recommended Humidity | 55–75% |
Print Speeds
- 6 Pass: 1 m²/h
- 8 Pass: 0.6 m²/h
- 12 Pass: 0.3 m²/h
Specifications and listed speeds are based on supplier data. Actual performance varies by artwork, print settings, consumables, and operating conditions.
Before You Order
- Print size: Maximum print width is 330 mm, approximately 13 inches.
- Computer: A compatible Windows computer is required for the listed software configuration.
- Workflow: DTF printing requires compatible ink, film, powder, curing equipment, and a heat press.
- Workspace: Allow extra room for film feeding, output, and maintenance.
- Maintenance: Regular care is required, including during periods of inactivity.
Have questions about the configuration? Contact us before ordering so we can help you check what suits your workspace.
